Implementing A Spinner Dialog and Block User Input During REST API Calls in AEM

In web development, ensuring a seamless user experience during asynchronous operations is crucial. Recently, I came across a use case where I needed display a spinner dialog and block user input while a REST call was in progress in AEM. This post walks you through how I achieved this by leveraging Coral UI components.

Coral UI Documentation

The Challenge

When a REST call is initiated, it's important to prevent users from interacting with the application until the operation is complete. Initially, I used the Coral Wait API to display a waiting dialog during the AJAX call. While this did show a loader, it did not completely prevent user interactions in the background. Users were still able to click on elements, which could potentially disrupt the REST operation and lead to inconsistent states.

Initial Approach: Using Coral Wait API

Coral Wait is used as to indicate a process that is in-progress for an indefinite amount of time. Here’s how I implemented it initially:

(function(document, $) {
    var wait;
    var wait = new Coral.Wait().set({
        size: "L",
        centered: true
    });
    wait.id = "restCallInProgressWaitId";
    document.addEventListener('DOMContentLoaded', function() {
        document.body.appendChild(wait);
    });

    $(document).on('click', '#yourButton', function() {
        wait.open();
        // Make the AJAX call
        $.ajax({
            url: 'your/rest/endpoint',
            method: 'GET',
            success: function(response) {
                // Handle the response
            },
            complete: function() {
                wait.close();
            }
        });

    });
})

While this effectively displayed a loader, it didn't block user interactions in the background. This limitation meant that users could still click on other buttons or links while the loader was visible.

Enhanced Solution: Combining Coral Wait and Coral Dialog

To fully block user input, I needed a more robust solution. I discovered that by injecting the Coral Wait component inside a Coral Dialog. The reason behind using coral dialog is it fires the coral-overlay events in the background which prevents any background interactions.

Here's how I implemented the enhanced solution

(function(document, $) {
    var dialog;
    var dialog = new Coral.Dialog().set({
        id: "restCallInProgressDialogId",
        backdrop: 'static',
        variant: 'default',
        closable: 'off',
        open: false
    });

    var wait = new Coral.Wait().set({
        size: "L",
        centered: true
    });
    wait.id = "restCallInProgressWaitId";

    document.addEventListener('DOMContentLoaded', function() {
        dialog.content.appendChild(wait);
        document.body.appendChild(dialog);
    });

    $(document).on('click', '#yourButton', function() {
        if (dialog) {
            dialog.open = true;
        }
        // Make the AJAX call
        $.ajax({
            url: 'your/rest/endpoint',
            method: 'GET',
            success: function(response) {
                // Handle the response
            },
            complete: function() {
                dialog.open = false;
            }
        });

    });
})

#restCallInProgressDialogId .coral2-Dialog-wrapper {
  background-color: inherit;
}

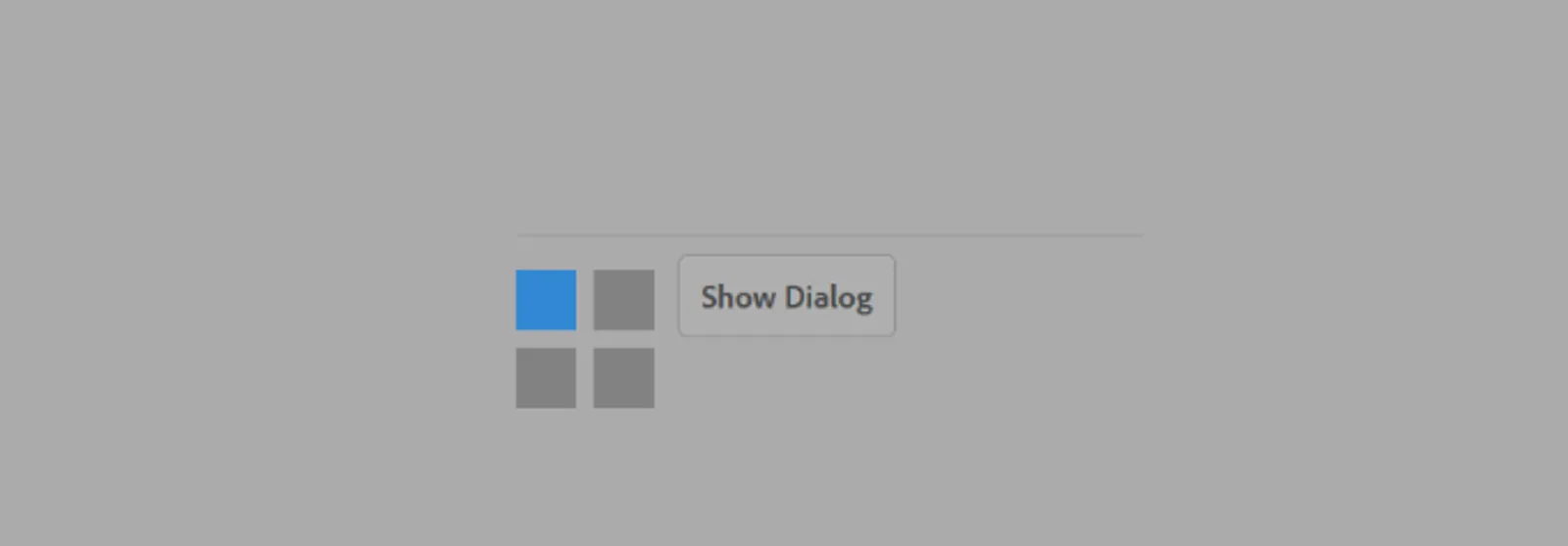

Below is the screenshot of the result

Benefits of the Enhanced Solution

By using the Coral Dialog to encapsulate the Coral Wait component, I achieved the desired functionality:

• Full User Input Blocking: The Coral Dialog's overlay prevents any user interactions with the background elements.
• Customizable Loading Indicator: The Coral Wait component provides a clean and professional loading indicator within the dialog.

Conclusion

Blocking user input during REST operations is essential for maintaining the integrity of the application state. By combining Coral Wait with Coral Dialog, I was able to create a user-friendly solution that not only displays a loading indicator but also prevents any user actions until the REST call is complete. This approach ensures a smoother and more reliable user experience in AEM.

Feel free to implement this in your AEM projects and let me know if you have any questions or improvements!
